| MODEL : SGE 400 |
 |
| Specification |
| Part |
Description |
| Grinding Method |
NC controlled Plunge |
| Worgk Support |
Two Shoe & Magnet Chuck |
| Grindable Work O.D |
10 to 60 ( 20 to 90 ) |
| Grindable Groove Radius |
to 8 |
| Loader |
Single or Double Arm Type |
| Dresser |
Forming Dresser Spindle |
| Work Head Swivel |
-6 to +35degree |
| Grinding Spindle |
Hydro-Static Spindle or Rolling Bearing Type |
| Working center |
about FL 900 |
| Work spindle speed |
400 to 1200 rpm |
| G.W spindle speed |
2,350 rpm(3,000m/min) |
| Motor |
G.W Table |
AC SERVO 3.0kw |
| Dress Table |
AC SERVO 3.8kw |
Work Head |
0.75kw 6P AC Motor |
| Belt Driven G.W |
3.7kw 4P AC Motor |
| Hydraulic Motor |
2.2kw 4P AC Motor |
| Hydraulic tank |
60 Liter |
| Machine Volume |
2000*1900*1950H |
| Machine Weight |
4.5 Ton |
|

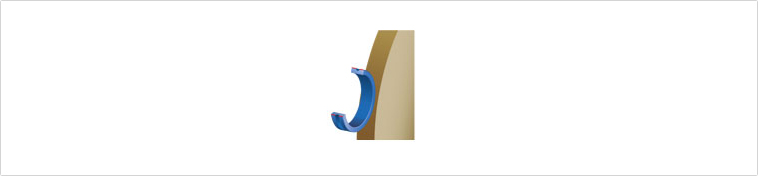

Centerless external grinder |
|
|
|
