| High frequency |
 Home > Products > High precision spindle > High frequency |
|
|
| MODEL : SHS |
 |
| HIGH FREQUENCY SPINDLES |
MODEL |
FREQUENCY( Hz ) |
POWER( kw ) |
VOLT( V ) |
SPINDLE O.D (mm) |
SHAFTDIA'(mm) |
QUILLDIA'(mm) |
QUILL SCREW |
MAX RPM |
SHS 15-018/17 |
600 |
17 |
220/350 |
150 |
65 |
63/36 |
M34 |
18000 |
SHS 15-030/16 |
1000 |
16 |
220/350 |
150 |
55 |
53/32 |
M30 |
30000 |
SHS 12-042/12 |
1400 |
12 |
220/350 |
120 |
40 |
38/22 |
M20 |
42000 |
SHS 12-021/12 |
1700 |
12 |
220//350 |
120 |
30 |
28/16 |
M14 |
21000 |
SHS 12-060/7 |
1000 |
7 |
220/350 |
120 |
25 |
23/14 |
M12 |
60000 |
SHS 12-060/5.3 |
1000 |
5.3 |
200 |
120 |
25 |
23/14 |
M12 |
60000 |
SHS 12-075/5 |
1250 |
5 |
220/350 |
120 |
20 |
18/10 |
M8 |
75000 |
SHS 12-090/3 |
1500 |
3 |
220/350 |
120 |
17 |
16/9 |
M8 |
90000 |
SHS 10-105/2 |
1750 |
2 |
220/350 |
100 |
15 |
14/8 |
M6 |
105000 |
SHS 10-120/1.2 |
2000 |
1.2 |
220/350 |
100 |
12 |
12/6 |
M5 |
120000 |
| * Standard or Special Design |

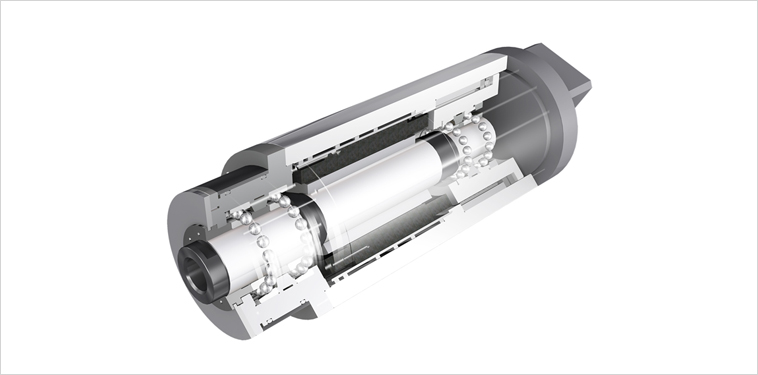

Grinding spindles manufacturers |
|
|
|
|
|
