| Superfinishing |
 Home > Products > Grinding machines > Superfinishing |
|
|
| MODEL : SSF 120 |
 |
| Specification |
| Part |
Description |
| Working Method |
Osccilating |
| Worgk Support |
Two Shoe + Pressure Roller |
| Work O.D |
15 to 110 (Outer Race) |
| 15 to 90 (Inner Race) |
| Work Width |
6 to 65 (over ID PHI 10) |
| Loader |
Cassette Type |
| Osccilating Unit |
Air Bearing Slide |
| Osccilating Stroke |
0.5, 1.0, 1.5, 2.0, 2.5 |
| Osccilating Speed |
300 to 2,000 fpm |
| Work spindle speed |
MAX 3,300 rpm (Outer Race) |
| MAX 2,200 rpm (Outer Race) |
| Motor |
Osc' Motor |
0.4 kw 4P AC Motor |
| Work Head |
1.5 kw 4P AC Motor |
Hydraulic Motor |
1.5 kw 4P AC Motor |
| Hydraulic tank |
40 Liter |
| Machine Volume |
18000*1000*1800H |
| Machine Weight |
2.5 Ton |
|

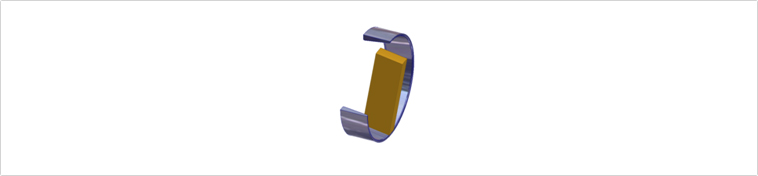

Horizontal surface grinding |
|
|
|
