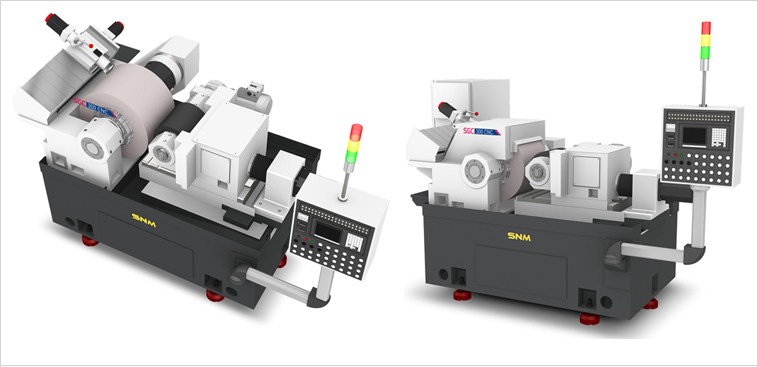

| Centerless External grinder |
 Home > Products > Grinding machines > external grinder |
|
|
| MODEL : SGC 300 |
 |
 |
 |
| Specification |
| Part |
Description |
| Grinding Method |
Centerless Through Feed or Infeed |
| Worgk Support |
Workrest Support |
| Grindable Work O.D |
40 to 120 |
| Grindable Work Length |
max 300 mm |
| G.W |
Dia. |
610 mm |
| Width |
405 mm |
| Bore |
304.8 mm |
| R.W |
Dia. |
330 mm |
| Width |
405 mm |
| Bore |
203.2 mm |
| Loding |
Through Feeding or Infeed |
| Dressing Type |
Traverse Type Point Diamond Dresser |
| Motor |
R.W Table |
AC SERVO 3.7 kw |
| G.W Driven |
22kw 4P AC Motor |
| R.W Driven |
2.2kw 4P (Gear Reducer Type) |
| Hydraulic Motor |
2.2kw 4P AC Motor |
| Hydraulic tank |
60 Liter |
| Machine Volume |
3500*2500*1950H |
| Machine Weight |
7.0 Ton |
|
